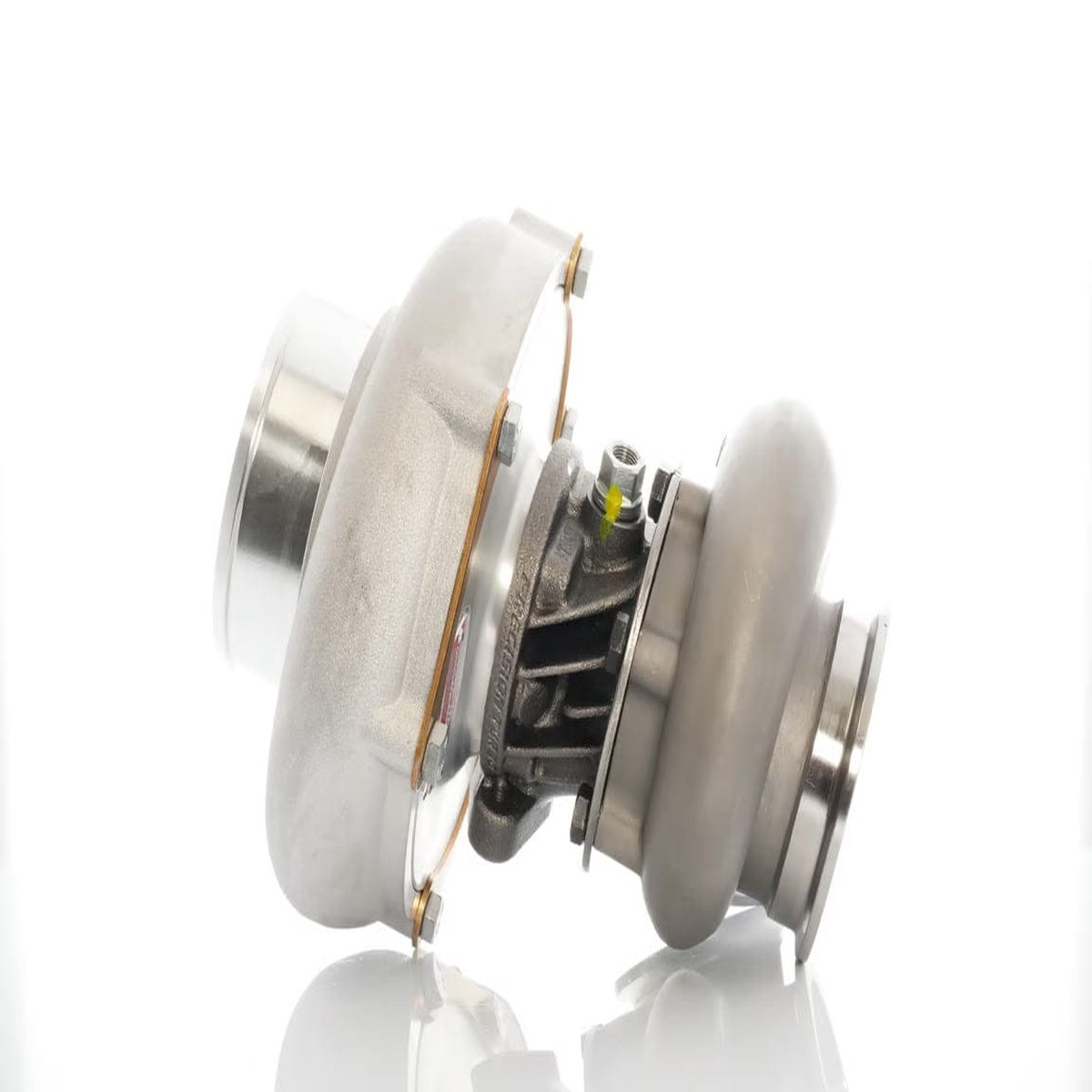

Name: Precision Turbo Engine Next Gen Pt6870 Bb Scp Cc W T4 Divided InletV-Band Discharge 115 AR
SKU: GEN-912314
Availability: InStock

Introducing the all-new 1200 horsepower rated 6870 Next Gen S & H Cover turbocharger from the global leader in turbocharging technology. The new 6870 Next Gen brings a new CEA (Competition Engineered Aerodynamics) technology compressor wheel machined from a 2618-aluminum closed die forging for strength and optimized airflow and an all-new compressor cover design with flow enhancements and advanced machining techniques, providing 10% more airflow and greater efficiency at higher pressure ratios. This unit is available now in T3, T4 open, T4 divided or V-Band In/out housing options.

Key Features: NEXT GENERATION RACE TECHNOLOGY HP Rating: 1200 HP Next Gen Aero Technology including an all-new flow enhancements to the compressor housing providing 10% more flow than previous Gen 2 turbocharger compressor covers. CEA (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum closed die forging for strength & optimized air flow. Air-cooled dual ceramic ball bearing center section (CHRA) for quick turbo response & durability. Available in an All-New SP compressor cover w/ 4 inlet and 2-1/2outlet and for the first time in HP compressor cover w/ 4 inlet and 3outlet for maximum air flow. High flow / highly efficient 70mm turbine wheel No price increase over Gen 2. Specifications: Compressor Wheel Inducer: 68mm Compressor Wheel Exducer: 92.5mm 94.7 ET Turbine Wheel Inducer: 78.7mm Turbine Wheel Exducer: 70.2mm

Shopping Cart

Description

Reviews (0)

Related Products

Precision Turbo Engine Gen1 Pt6266 Jb Sp Cc W Buick 3-Bolt Inlet 85 AR Std Act

Precision Turbo Engine Gen1 Pt6266 Jb Sp Cc W T4 InletV-Band Discharge 96 AR

Precision Turbo Engine Gen2 Pt5862 Bb Sp Cc W T3 Stainless V-Band InOut 82 AR

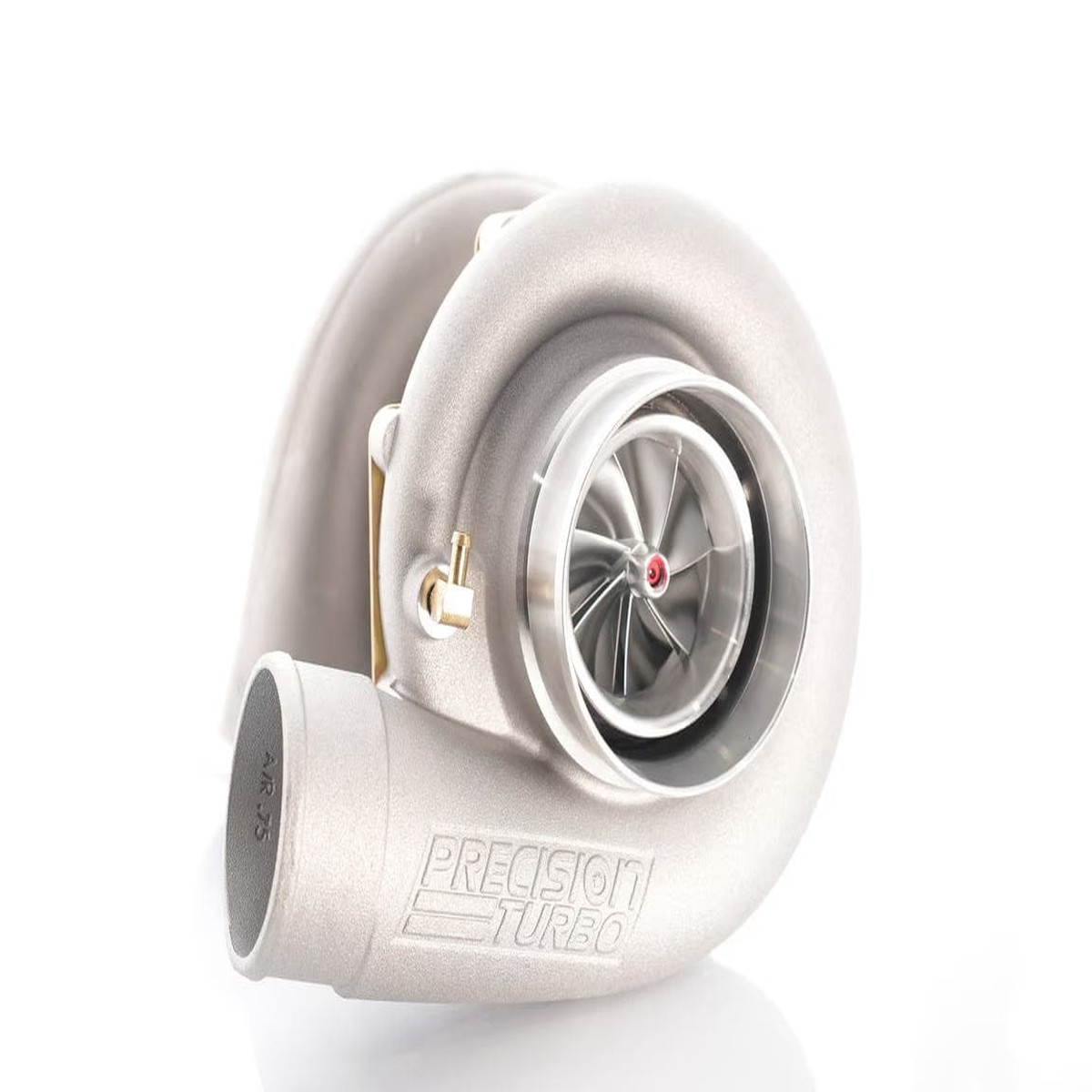

Precision Turbo Engine Next Gen Pt6466 Bb Hp Cc W T4 Divided InletV-Band Discharge 132 AR
